Williams / Bally Pinball EPROM Upgrade Chip / Set |
PINBALL MACHINE EPROM UPGRADE
SERVICE
I can provide EPROM upgrades to many pinball machines, check lists below to see
if your game has the latest software program, if not, either check my auctions
on Ebay or e-mail me at jim1@jjf2.com for more info.
EXAMPLE OF CHIPS USED
Description;
Williams/Bally 81'-98'
Games EPROM upgrades.
CHECK OUT MY EBAY AUCTIONS.
please e-mail for questions on this item or others that are available
If your game does not have the latest software revision, you may have software
bugs in your game! Or you could be missing special features, settings or
adjustments. Williams made software updates to just about all games after
the production runs had been shipped from the factory!
EPROM Revisions;

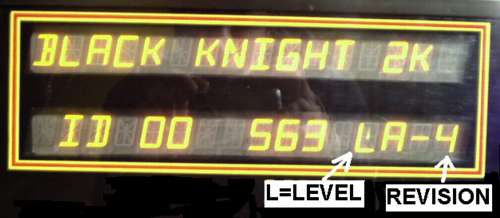

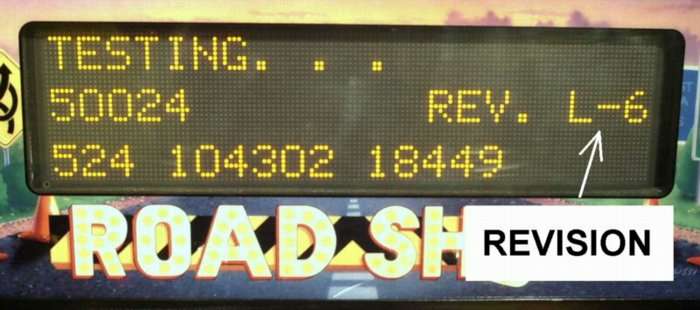

Check to make sure you game has the latest EPROM chips. It easy, just look at
the display upon power on, the display will show the software
revision of your game. (see example pic) Or just open the coin door and press
the advance button. Check the chart below, if your game has
the revision listed below your all set, if not, get a new EPROM!!
About the EPROM Chips;
I will program the EPROM chip, check and
verify the chip. Most of the chips I have are used. But that's ok, because
these chips can be erased and re-programmed (thousands of times if needed!),
that's how they were designed!
I install the latest software on all my own pin's. You should too!
Installation ;
When you install these chip, just make sure the power to the game is
off, remove the backglass, carefully remove the old chips (U6 or G11, 90'-98')
or (U26 & U27, 86'-90') or (IC14 & IC26 or U20, 81'-85'), also
note which end of the chip has the notch in it (the new chip must go in the same
direction) , remove
any static you may have (just lean you body against the cabinet, then touch your
finger to a ground screw in the back box), check the new EPROMS to make sure
the pins are straight, align the chip with the socket, make sure all the chip
pins are aligned with the sockets, then gently insert the chip into the socket!
Do not force it!
*** Please note, your settings and adjustments will be restored to factory
settings, and your high scores will be reset (yes, I no..."oh no, not my high
scores!" yes, you'll have to play, play, play to get some new high scores !!!!)
You may also have to turn your machine on and off twice to initialize the new
settings.
please e-mail for questions on this item, good luck!
Payment by;
Money Order, Postal
Order, Bank Check or
PayPal. (I prefer PayPal, if you don't have it, sign up, it's
easy)
I am currently selling most games for $14.95
(including shipping!)
Shipping
Info;
FREE !!!
(USA orders only)
I will ship the least expensive way by USPS. If you
want priority mail, you may pay for the $3.85 standard rate.
|
Other Williams/Bally 90'-98' Pinball Machines Game ROM Revisions, for Reference |
|
|
Addams Family |
Revision L-5 game ROM |
|
Addams Family (GOLD) |
Revision L-3 game ROM |
|
Attack from Mars |
Revision 1.1 game ROM |
|
Black Rose |
Revision L-4 game ROM |
|
Champion Pub |
Revision 1.6 game ROM |
|
Congo |
Revision 2.1 game ROM |
|
Corvette |
Revision 2.1 game ROM |
|
Creature from the Black Lagoon |
Revision L-4 game ROM |
|
Demolition Man |
Revision L-4 game ROM |
|
Dirty Harry |
Revision L-2 game ROM |
|
Dracula |
Revision L-1 game ROM |
|
Dr. Who |
Revision L-2 game ROM |
|
Fish Tales |
Revision L-5 game ROM |
|
Flintstones |
Revision L-5 game ROM |
| Funhouse | Revision L-9 game ROM |
| Gilligan's Island | Revision L-5 game ROM |
|
High Speed II: The Getaway |
Revision L-5 game ROM |
| Hurricane | Revision L-2 game ROM |
|
Indianapolis 500 |
Revision 1.1 game ROM |
|
Indiana Jones |
Revision L-7 game ROM |
|
Jack*Bot |
Revision 1.0 game ROM |
|
Junkyard |
Revision 1.2 game ROM |
|
Johnny Mnemonic |
Revision 1.2 game ROM |
|
Judge Dredd |
Revision L-7 game ROM |
|
League Champ |
Revision 1.1 game ROM |
|
Medieval Madness |
Revision 1.0 game ROM |
|
NBA Fastbreak |
Revision 3.1 game ROM |
|
No Fear |
Revision 2.3 game ROM |
|
No Good Gofers |
Revision 1.3 game ROM |
| Party Zone | Revision L-3/F-4 game ROM |
|
Popeye |
Revision L-5 game ROM |
|
Roadshow |
Revision L-6 game ROM |
|
Safe Cracker |
Revision 1.8 game ROM |
|
Scared Stiff |
Revision 1.5 game ROM |
|
Shadow, The |
Revision L-6 game ROM |
| Slugfest | Revision L-1 game ROM |
|
Star Trek: The Next Generation |
Revision L-7 game ROM |
| Strike Master | Revision L-4 game ROM |
|
Tales of the Arabian Nights |
Revision 1.4 game ROM |
|
Terminator 2 |
Revision L-8 game ROM |
| The Machine: Bride of Pinbot | Revision L-7 game ROM |
|
Ticket Tac Toe |
Revision 1.0 game ROM |
|
Theatre of Magic |
Revision 1.3 game ROM |
|
Twilight Zone |
Revision 9.4H (home version) game ROM. |
| Twilight Zone |
Revision 9.2 game ROM. |
|
White Water |
Revision L-5 game ROM. |
|
Who Dunnit |
Revision 1.2 game ROM. |
|
World Cup |
Revision L-2 game ROM. |
|
Other Williams/Bally 86-90 Pinball Machines Game ROM Revisions, for Reference |
|
|
Bad Cats |
Revision L-5 game ROM. |
|
Banzai Run |
Revision L-3 game ROM. |
|
Big Guns |
Revision L-8 game ROM. |
|
Black Knight 2000 |
Revision L-4 game ROM. |
|
Bugs Bunny's Birthday Ball |
Revision L-2 game ROM. |
|
Cyclone |
Revision L-5 game ROM. |
|
Diner |
Revision L-4 game ROM. |
|
Dr. Dude |
Revision L-2 game ROM. (Bally) |
|
Revision P-7 game ROM. (Williams, Blue Arch) |
|
|
Earthshaker |
Revision L-3 game ROM. |
|
Revision F-1 game ROM. (Family Version, removes the 'oooh bitchin' sound) |
|
|
Elvira and the Party Monsters |
Revision L-4 game ROM. |
|
F-14 Tomcat |
Revision L-1 game ROM. |
|
Fire! |
Revision L-3 game ROM. |
|
Game Show |
Revision L-3 game ROM. |
|
Grand Lizard |
Revision L-4 game ROM. |
|
High Speed |
Revision L-4 game ROM. |
|
Jokerz! |
Revision L-6 game ROM. |
|
Millionaire |
Revision L-3 game ROM. |
|
Mousin' Around |
Revision L-4 game ROM. |
|
Pinbot |
Revision L-5 game ROM. |
|
Police Force |
Revision L-4 game ROM. |
|
Pool Sharks |
Revision L-7 game ROM. |
|
Radical |
Revision L-1 game ROM. |
|
Riverboat Gambler |
Revision L-3 game ROM. |
|
Road Kings |
Revision L-5 game ROM. |
|
Rollergames |
Revision L-2 game ROM. |
|
Space Station |
Revision L-5 game ROM. |
|
Swords of Fury |
Revision L-2 game ROM. |
|
Taxi |
Revision L-3 game ROM (Marilyn). |
|
Revision L-4 game ROM (Lola). |
|
|
Transporter |
Revision L-3 game ROM. |
|
Whirlwind |
Revision L-3 game ROM. |
|
||||||||||||||||||||||||||||||
